Innovations with Just One Plug-in
nex NuCore
Unlock New Education and Collaboration AI Tools on Your ViewBoards
What's included in nex NuCore

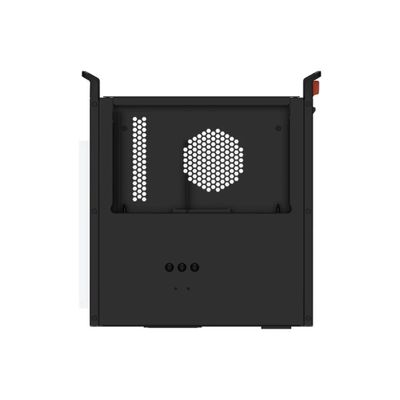

NuCore 120-Pin OPS Bracket
NuCore 120-Pin OPS Bracket
NuCore 120-Pin OPS Bracket
Designed around the standard Intel 80-pin architecture, the nex 80–120-pin OPS PC bracket supports OPS modules from multiple brands, delivering seamless one-plug integration. This open compatibility offers the flexibility to upgrade ViewBoards for both educational and business environments.

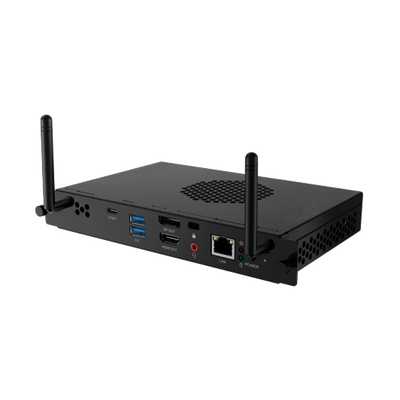

Windows OPS PC
NuCore 120-Pin OPS Bracket
NuCore 120-Pin OPS Bracket
To deliver the highest quality experience, two OPS PC options are offered. nex Lab–certified OPS modules ensure full functionality and dependable performance, while nex-branded OPS provides enhanced compatibility and greater flexibility for customization, including personalized backgrounds and preloaded applications.
Key Specifications - The NuCore Bracket
I/O Ports
- 80-pin interface to OPS
- 120-pin interface to ViewBoard
Physical Specifications
- Dimension (L x W x H): 246.2 x 263.3 x 35mm
- Net Weight: 1.2kg
Environmental Requirements
- Operating Temperature: 0 ºC ~ +45 ºC
- Non-Operating Temperature: -20 ºC ~ +65 ºC
- Operating Humidity: 10% ~ 90%, non-condensing
- Non-Operating Humidity: 10% ~ 90%, non-condensing
Key Specifications - The OPS
System Specifications
- CPU: Intel® Core™ i5-14400
- Memory: DDR4 SO-DIMM 16GB
- Storage: SSD 256GB
- Operating System: Windows 11 Pro
I/O Ports
- USB Type A: USB3.0 x2
- USB Type C x1 (Data only)
- Audio input: MIC (Microphone) x1
- HDMI output: HDMI 2.0 x1 (Up to 3840 x 2160@60Hz)
- DisplayPort output: DP 1.4 x1 (Up to 7680 x 4320@60Hz)
- LAN port: RJ45 x1 (10/100/1000M)
Wireless & Bluetooth
- Intel® Wi-Fi 6 AX200 802.11 a/b/g/n/ac/ax 2T2R + BT5.1
Power
- Voltage: DC 12-19V
- Consumption: 85.6W (Max)
Physical Specifications
- Dimension (L x W x H): 180 x 119 x 30mm
- Net Weight: 0.75kg
Environmental Requirements
- Operating Temperature: -10 ºC ~ +45 ºC
- Non-Operating Temperature: -20 ºC ~ +60 ºC
- Operating Humidity: 10% ~ 90%, non-condensing
- Non-Operating Humidity: 10% ~ 90%, non-condensing
myViewBoard WhiteBoard built-in
ISTE-Certified Edtech Solution
ViewSonic myViewBoard® software has earned an official ISTE Seal.
- Full Windows and Microsoft Support: Built to integrate with Windows and familiar tools like Word, PowerPoint, and PDF.
- Advanced Functionality: Full access to all myViewBoard functions within Magic Box to prepare lessons as they will be delivered.
- 3rd Party Integrations: Use popular tools like OneDrive, Google Drive, and Dropbox.
