Collaborate with Just One-Click

nex NowClick

Wireless Casting System for Education and Business Presentation

What's included in nex NowClick

NowClick 80-Pin OPS Bracket

NowClick 80-Pin OPS Bracket

NowClick 80-Pin OPS Bracket

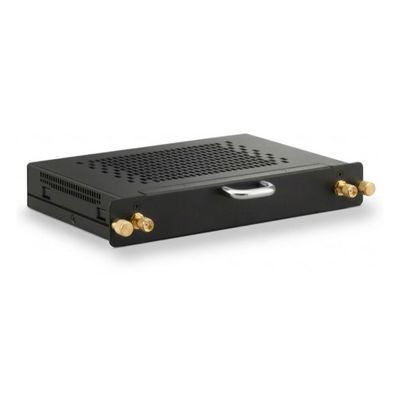

The nex NowClick OPS bracket transforms ViewBoard into an embedded wireless casting system. Its patented design supports multiple wireless casting dongle options to suit different needs—including AirPlay and Miracast support, touch-back functionality, or pure peer-to-peer casting.

Wireless Casting Dongle

NowClick 80-Pin OPS Bracket

NowClick 80-Pin OPS Bracket

A wide range of options is available on the market, but nex recommends the ViewSonic WPD-900 / WPD-900E as the ideal companion for the nex NowClick OPS bracket. Optimized for seamless compatibility with ViewBoard, they deliver a fully integrated experience.

Drawing inspiration from Google’s Project Ara, nex envisions a new standard—where embedded meets modular.

Key Specifications - The NowClick Bracket

I/O Ports (External)

  • 80-Pin interface to ViewBoard

I/O Ports (Internal)

  • USB Type A: USB3.0 x1
  • USB Type C: DP 1.4 in x1 (Up to 7680 x 4320@60Hz)
  • HDMI input: HDMI 2.0 x1 (Up to 3840 x 2160@60Hz)

Physical Specifications

  • Dimension (L x W x H): 180 x 119 x 30mm
  • Net Weight: 0.5kg

Environmental Requirements

  • Operating Temperature: 0 ºC ~ +45 ºC
  • Non-Operating Temperature: -20 ºC ~ +65 ºC
  • Operating Humidity: 10% ~ 90%, non-condensing
  • Non-Operating Humidity: 10% ~ 90%, non-condensing

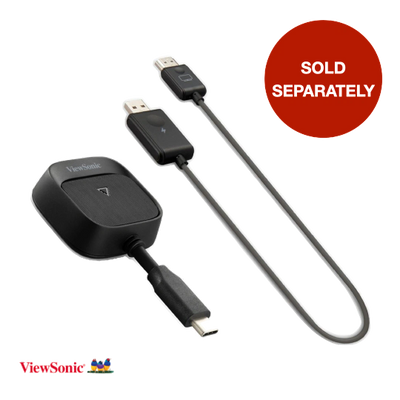

Key Specifications - The Wireless Casting Dongle

Our Recommended Model

  • Brand: ViewSonic
  • Model Number: WPD-900 / WPD-900E
  • Sold Separately

Transmitter Spec

  • Connector: USB Type C x2 (DP x1 + PD-in 60W x1)
  • Power: 5V / 1A
  • Dimension (W x D x H): 87 x 42 x 15 mm
  • Net Weight: 23g

Receiver Spec

  • Connector: HDMI x1 + USB Type A x1
  • Power: 5V / 0,5A
  • Dimension (W x D x H): 706 x 25 x 11 mm
  • Net Weight: 27.5g

Wireless Casting System Spec

  • Output resolution: Up to 1080p 60Hz
  • HDCP Support: HDCP 1.4
  • WiFi: 5G
  • Screen Mirror / Extend mode: Yes
  • Latency: <80ms
  • Transmission Distance: Up to 30m

nex NowClick Bracket is compatible with...

ViewSonic WPD-900

Built-To-Order (BTO)

ViewSonic WPD-900

  • $199.99 (Amazon).
  • Peer-to-Peer wireless casting
  • Miracast, AirPlay
  • Transmitter x1
  • Receiver x1

j5create JVAW62

Built-To-Order (BTO)

ViewSonic WPD-900

  • $99.99 (Amazon)
  • Peer-toPeer wireless casting
  • Transmitter x1
  • Receiver x1

Built-To-Order (BTO)

Built-To-Order (BTO)

Built-To-Order (BTO)

  • Customized background
  • Customized transmitter quantity (Up to 8 transmitters)
